DTS

DTS manufactures the smallest, rugged onboard data acquisition solutions in the world. Our advanced measurement solutions allow test engineers to “redefine possible” on the ground and in the air.



dts

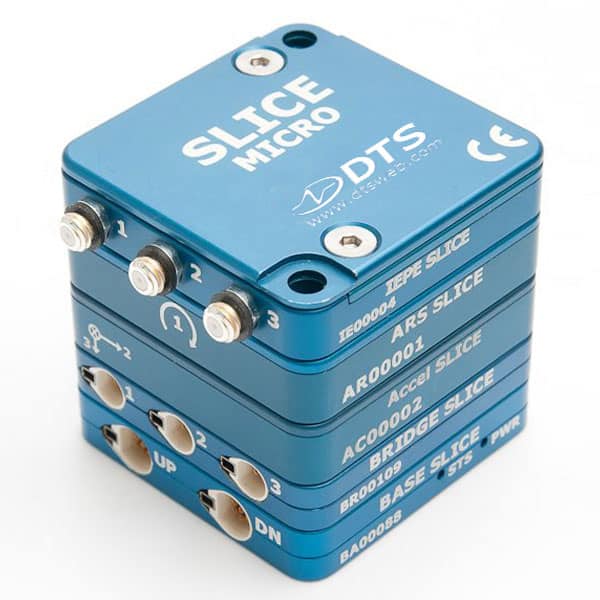

Slice Micro

  • 42X42 mm projection
  • BASE 42X42X8 mm, 25 grams
  • BRIDGE 42X42X7 mm, 20 grams
  • ACCEL 42X42X9 mm, 30 grams
  • ARS 42X42X9 mm, 30 grams
  • IEPE 42X42X7 mm, 30 grams
  • Up to 24 channels in a stack
  • Withstands 500 g and above shock tests
  • Sampling rate of 1 to 120 ksps / channel
  • 16-bit resolution
  • 7 GB internal memory
  • USB connection

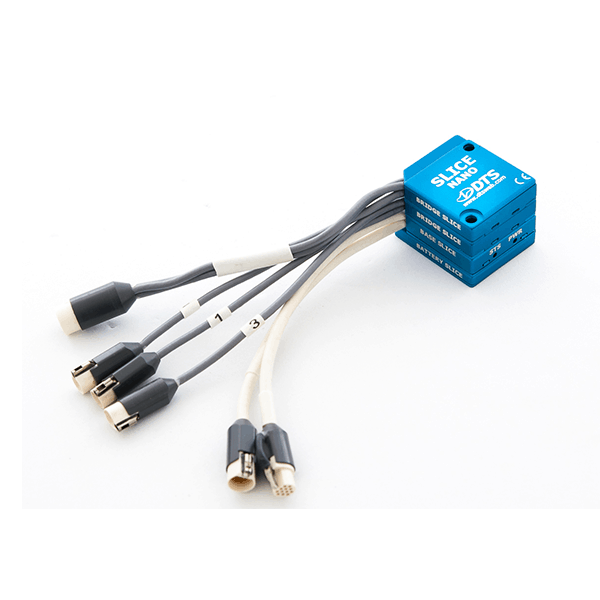

SLICE NANO Product 1

Slice Nano

  • 26X31 mm projection
  • BASE 31X26X6.5mm, 8 grams
  • BRIDGE 31X26X5.5mm, 6 grams
  • Up to 24 channels in a stack
  • Withstands 500g and above shock tests (5000g SLICE NANO only)
  • Sampling rate of 1 to 120 ksps / channel
  • 16-bit resolution
  • 7 GB internal memory
  • USB connection
  • Designed for embedded applications
  • Factory wired

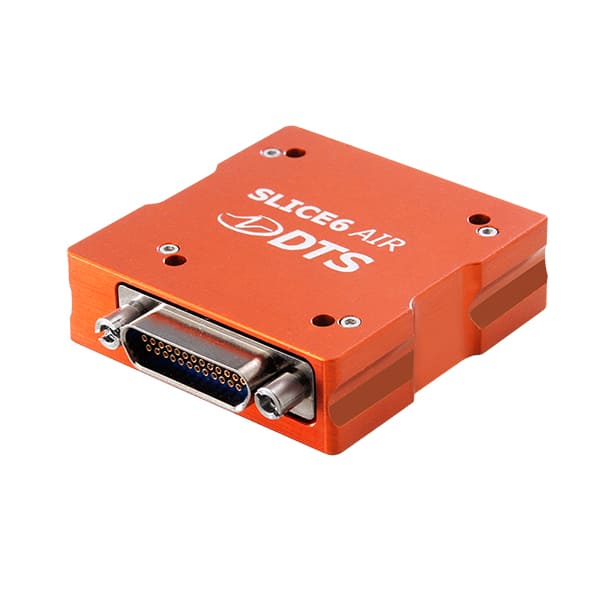

SLICE6 AIR Product Photo 1 1
  • Slice Air
    • 42x42x13 mm, 50 grams
    • Standalone, full signal conditioning, onboard recording and real-time streamings
    • Recording Mode: Up to 400k sps on all channels, programmable  Streaming Mode: Up to 20k sps IRIG-106 (Ch10 or TmNS)
    • 6 channel module; standalone, network or integrate into existing FTI
    • Up to 500 g shock rating
    • Data writes to 16 GB non-volatile flash memory
    • -40° to 80°C, IP65, MIL-STD-810G, MIL-STD-461G

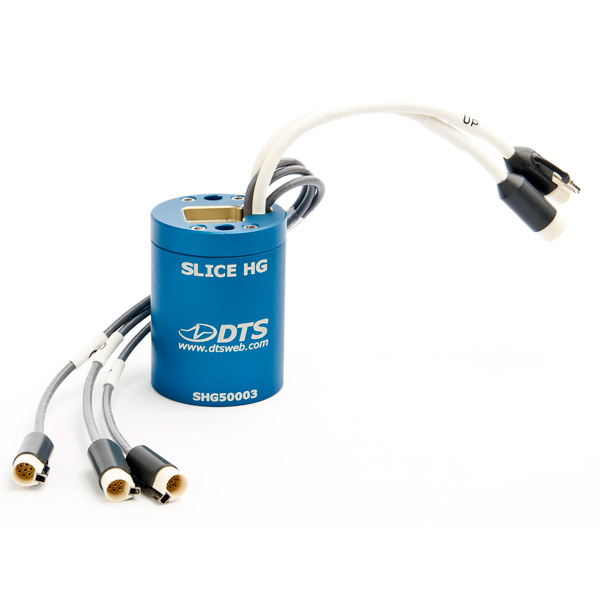

SLICE HG Product Photo1

Slice Hg High Durable

    • High shock resistance like 50000g thanks to its durable, small protection
    • 120 ksps / channel sampling rate
    • 7 GB memory
    • Low energy requirement; 9-15 VDC
    • Systems that can go up to 12 channels by forming a chain

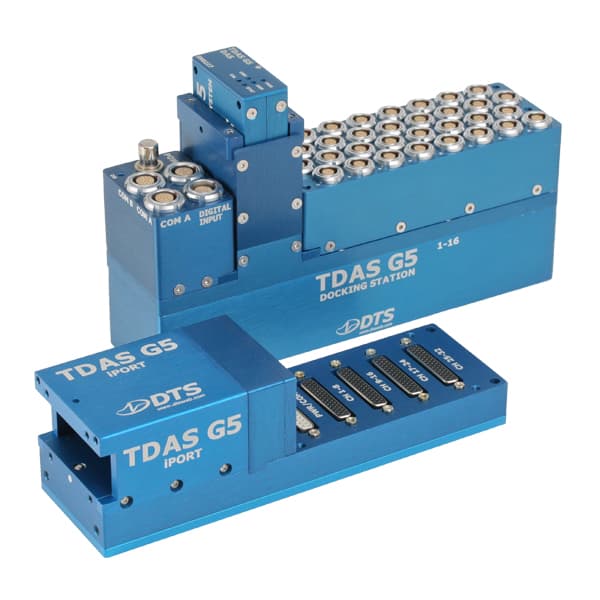

TDAS G5 Product Photo 3

TDAS G5

  • Designed and built to withstand dynamic test conditions on the vehicle or in the dummy
  • 32 programmable sensor input channels
  • Anti-aliasing filter
  • 16-bit analog to digital converter
  • Electronic identification (EID) provider
  • Adjustable sampling rate of 1 to 100 ksps
  • Cache: 10 ksps to 70 seconds (RAM)
  • Backup memory: 10 ksps 7 seconds (non-volatile memory)

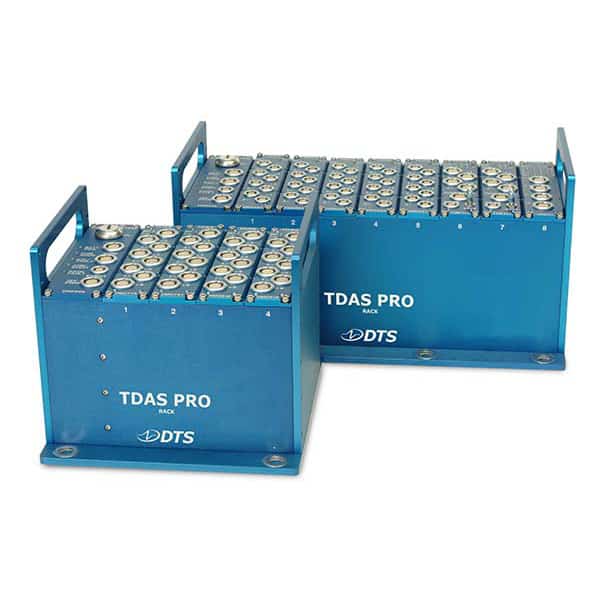

TDAS PRO Product Photo 1

TDAS PRO

  • TDAS PRO SIM sensor input module (SIM) is a stand-alone 8-channel data acquisition system
  • TDAS PRO TOM time output module (TOM) consists of 12 independent programmable time channels.
  • Manufactured and tested for 100g dynamic test conditions
  • It has a backup battery in case of primary energy loss
  • Basic 15-pin interface connector
  • Has LED lights to show operation and power
  • anti-aliasing filter
  • Ability to fulfill all functions at 70 ° C
